Cartridge Filling Best Practices
Temperature, fill volume, soak time, and capping sequence for clean, leak-free 510 cartridge production.
Consistent fills start long before oil touches the reservoir. This walkthrough covers the variables that most affect yield and leak rate on Empti 510 hardware — viscosity, fill temperature, dwell time, and the capping sequence — so your line runs clean from the first cartridge to the last.
What's covered
- Target fill temperature by oil viscosity
- Correct fill volume and headspace for ClearCore reservoirs
- Soak (wicking) time before capping
- Press-cap force and centering to prevent leaks

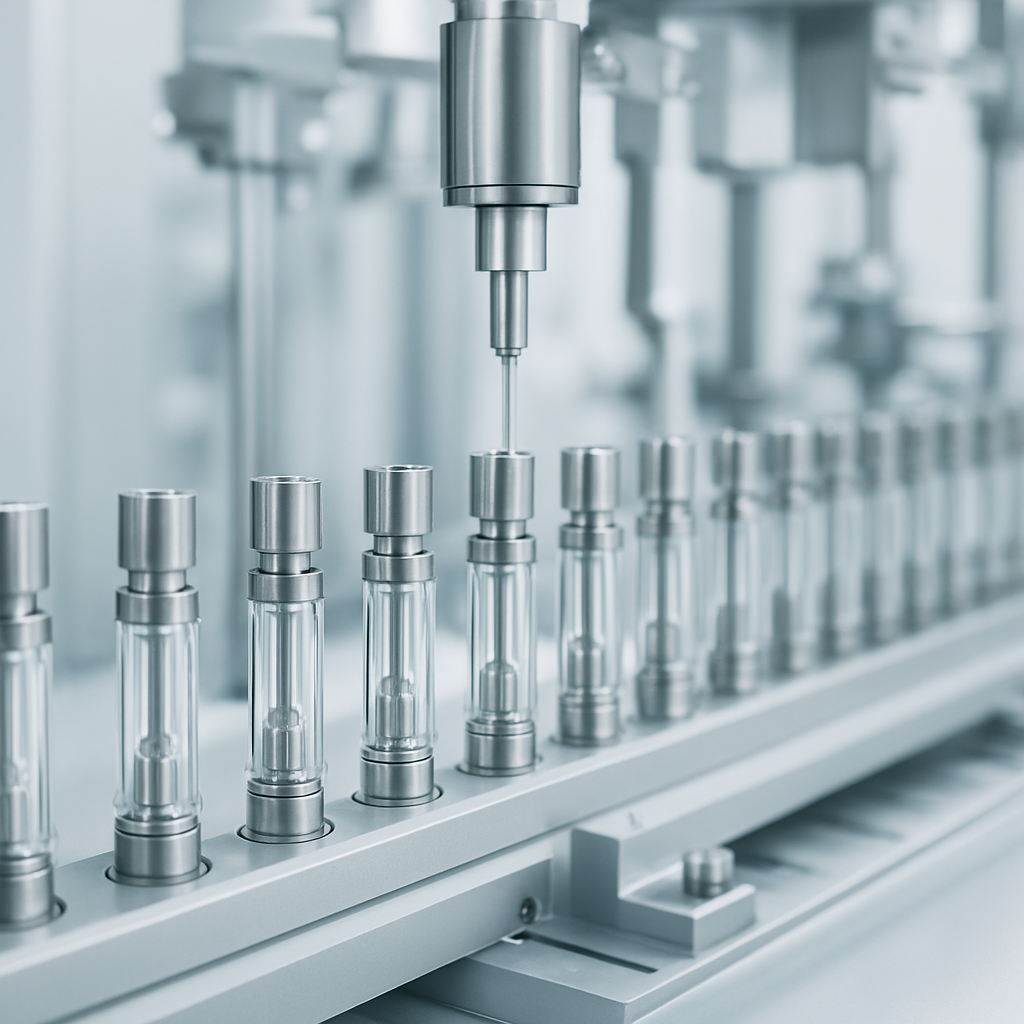

Filling line walkthrough
Viscosity & fill temperature
Most distillate fills best between 120–150°F (49–66°C), where viscosity drops enough to flow through a small-gauge nozzle without overheating terpenes. Thinner live-resin blends may fill as low as 95°F. Always confirm with a small test batch — overheating thins oil past the point of clean shutoff and promotes weeping at the intake holes.
Fill volume & headspace
Fill to the rated capacity, never above. ClearCore 1.0 mL reservoirs are designed with a small expansion headspace; overfilling forces oil into the central airpath during capping and is the most common cause of clogged or flooded carts. Use a calibrated dispenser and verify shot weight every 50–100 units.
Soak / wicking time
After filling, let cartridges rest upright so the wick fully saturates before capping and packaging. For ceramic-core hardware, allow a minimum of 30–60 minutes at room temperature (longer for high-viscosity oil). Capping or boxing too early traps dry wick that produces a harsh first pull and inconsistent vapor.
Capping sequence
Center the mouthpiece, apply even axial force, and avoid rocking the cap on. Press-fit caps seat with a positive click; over-pressing can crack glass, under-pressing leaves a path for leaks. If you use a pneumatic capper, validate force settings against a torque/pull-test sample at the start of every run.
Step-by-step
- 1
Stage & warm the oil
Bring oil to its target fill temperature in a controlled warmer. Confirm with a probe thermometer rather than relying on the warmer dial.
Heat in small batches — repeated reheating degrades terpenes.
- 2
Calibrate the dispenser
Set and verify shot weight against a scale before running production. Re-check every 50–100 units.
- 3
Fill to rated capacity
Dispense into the reservoir wall, not the central airpath. Maintain the designed headspace.
Oil in the airpath is the #1 cause of flooded cartridges.
- 4
Soak upright
Rest filled cartridges upright for 30–60 minutes so the core fully wicks.
- 5
Cap & pull-test
Press-cap with even force, then pull-test a sample from each run to validate seating.
